3/4″ Ball Valve Quick Connect Natural Gas Hose Connector Kit
Used for connecting high BTU output outdoor cooking appliances, construction heaters, and standby generators to a permanent gas supply via an integral ball valve quick disconnect.
*Standard Hose Length is 10 Feet. Be sure to check our sizing information to ensure the correct item order.
*IF YOU’RE ON MBSTURGIS.COM AND NEED TO SEE PRICING, THE STANDARD LENGTHS WE OFFER, CLICK THE GET MORE INFORMATION & BUY BOX.

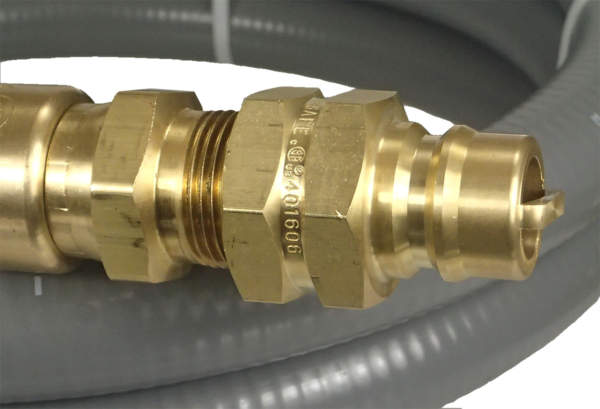

HOSE DESCRIPTION – 3/4″ ID Stripwound Hose Assembly with a 3/4″ Male QD Plug X 3/4″ Male Pipe Thread Swivel. 10′ Overall Length (Can be custom made to any length).

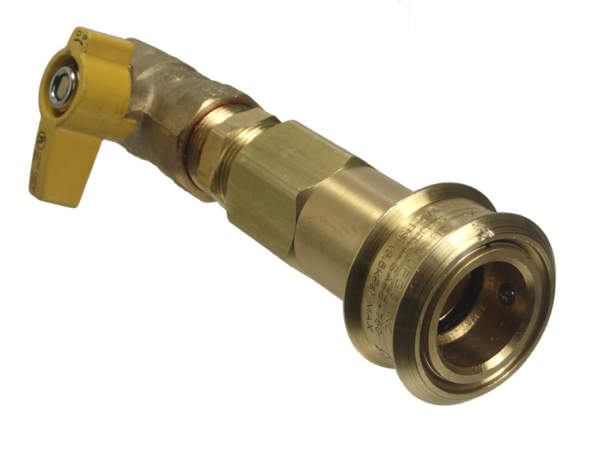

QUICK DISCONNECT – Model 5 3/4″ Ball Valve Quick Disconnect X 3/4″ Female NPT
MAX. FLOW CAPACITY – 275,000 BTU P/HR @ 1/2 PSIG with a 1″ W.C. Pressure Drop (5PSIG Max Working Pressure)
TEMPERATURE RANGE – -40ºF to 200ºF (-40ºC to 93ºC)
CERTIFICATION – Quick Disconnect (ANSI Z21.41) / Hose Assembly (ANSI Z21.54) Used for Natural & LP Gas
