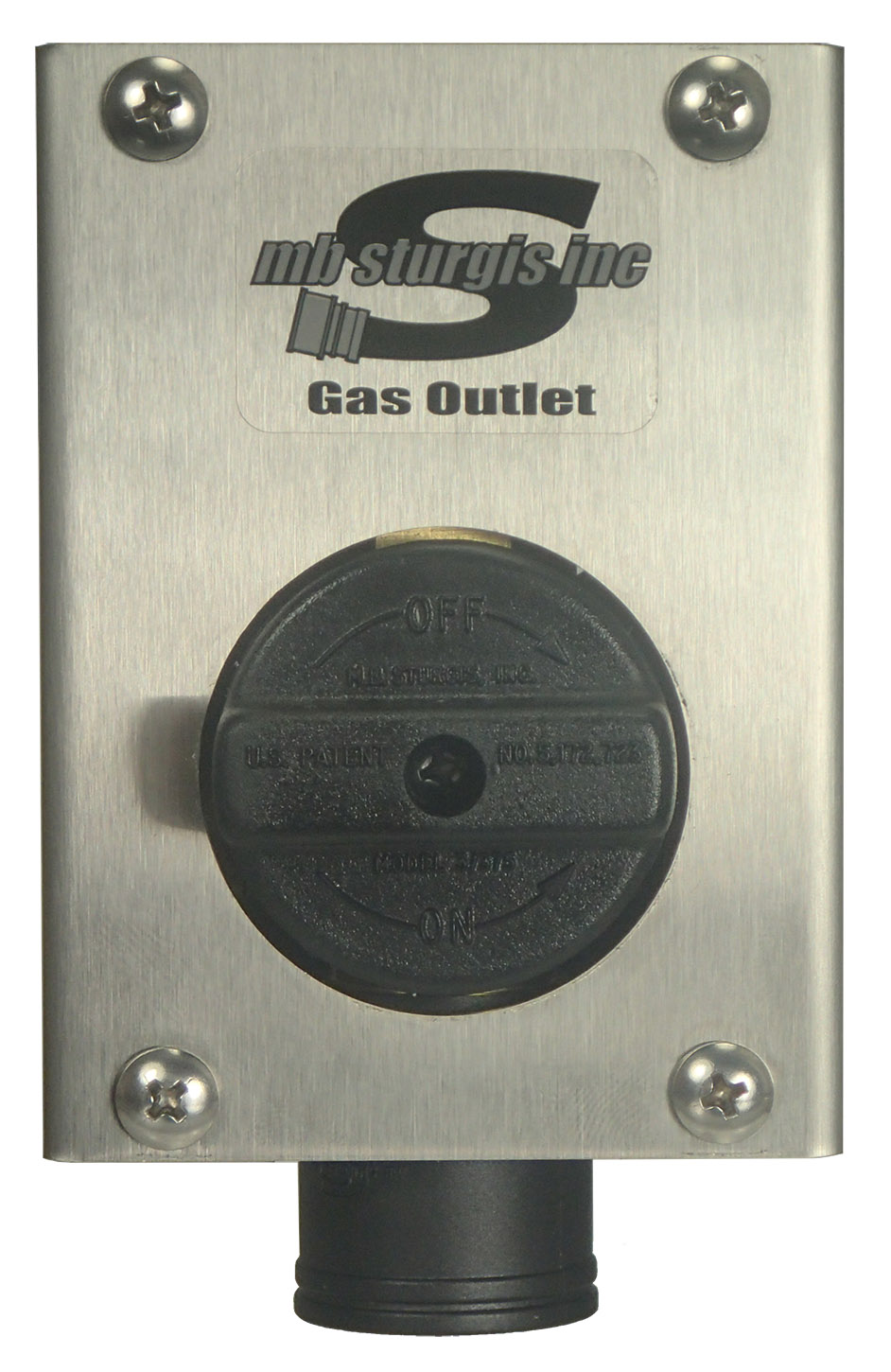

Stainless Steel Gas Outlet Box

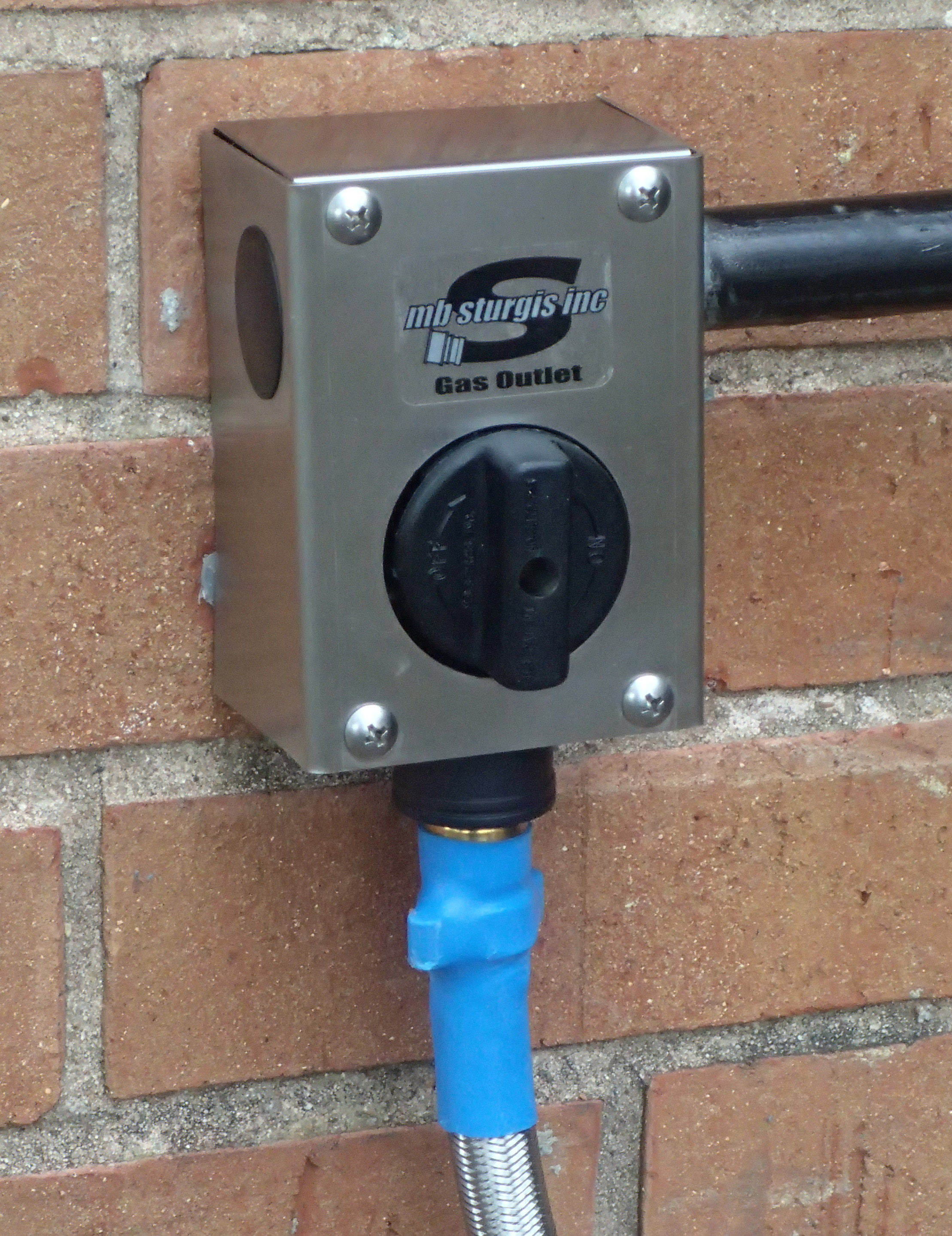

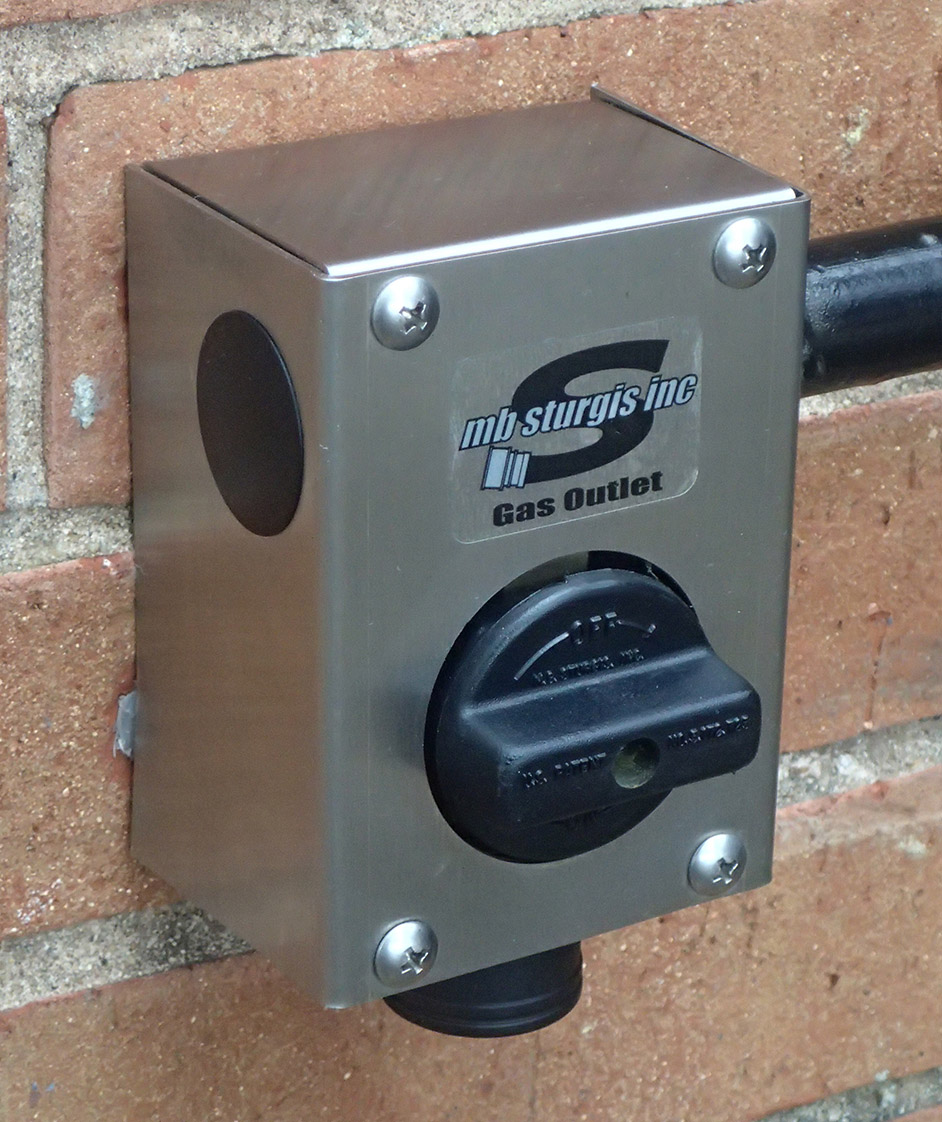

The M.B. Sturgis Inc. Stainless Steel Gas Outlet Box is a great way to attach your Natural Gas or Propane BBQ Grill to a permanent gas line in your house. This attractive Stainless Steel housing is much more aesthetically appealing than simply connecting a quick disconnect to the permanent gas line. Easy to install to any type of outdoor material and can accept gas lines from the rear or either side of the housing. The integral ball valve will only allow a gas connection when the valve is in the off position and the valve includes a thermal shut off device.
MATERIALS – Gas Oultet Housing is made of 304 Stainless Steel, Quick Disconnect body and valve is made of CA360 Brass.
BENEFITS – Couple Safe Technology Thermal Shut-off Device Protection. Designed to only allow gas line connection when the valve is in the closed position.
INCLUDES – Stainless Steel Housing, 3/8 Integral Ball Valve Quick Disconnect (104014), 90º 1/2″ Street Elbow, (4) Stainless Steel Installation Screws
DIMENSIONS – 4.0″ X 2.75″ X 2.125″
COMPATIBLE HOSE ASSEMBLIES – MBS Part Numbers 100484 / 100462
MAX. FLOW CAPACITY – 60,000 BTU P/HR Natural Gas @ .6″ W.C. Pressure Drop
PRESSURE RATING – 25 PSIG (Internally tested up to 350 PSIG)
TEMPERATURE RANGE – -40ºF to 240ºF (-40ºC to 116ºC)
CERTIFICATION – ANSI Z21.90 Used for Natural & LP Gas
