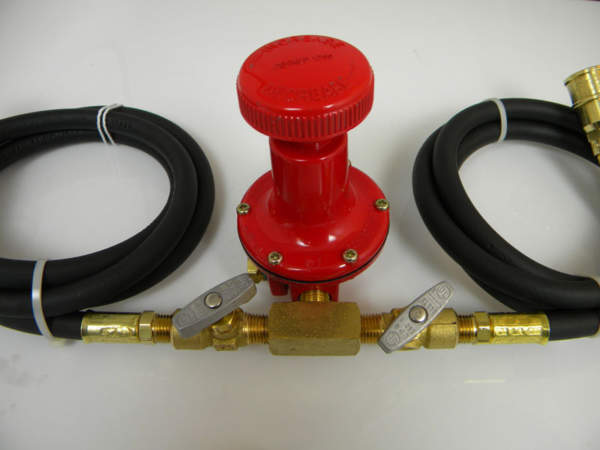

0-30 PSI High Pressure Regulator Assembly with Dual Quick Disconnect Hoses
Description
The ultimate in control & convenience!!! Used for connecting multiple high pressure, high volume LP appliances demanding higher BTU’s and optimal flame control such as Turkey Fryers, Crawfish Burners, Camping Stoves and Catering Equipment. The quick disconnect feature allows a fast & easy breakdown of appliances with no tools necessary.
This assembly comes with a POL tank connection. Can also be made with a Handwheel POL or Red Type 1.
*Standard Hose Length is 60″ OAL on Each Side
*IF YOU’R ON MBSTURGIS.COM AND NEED TO SEE PRICING, THE STANDARD LENGTHS WE OFFER, CLICK THE GET MORE INFORMATION & BUY BOX.
Specifications
High Volume 0-30psi Adjustable Gauge Port Regulator with a POL Tank Connection and dual 1/4″ ID Thermo Rubber Hoses terminating in a 1/4″ Female 5LPN Quick Disconnect. 60″ overall length. (Hose can be custom made to any length).
TANK CONNECTION OPTIONS – Red Type 1 or Handwheel POL
OUTLET PRESSURE – Adjustable from 0-30 PSI.
TEMPERATURE RANGE – -40ºF to 140º (-40ºC to 93ºC)
CERTIFICATION – UL144 / UL569 / CAN/CGA-6.9-M79 Used for LP Gas only
