1″ Quick Connect Gas Connector
Used for connecting very high BTU output outdoor cooking appliances, construction heaters, and standby generators to a permanent gas supply via quick disconnect.
*Standard Hose Length is 10 Feet. Be sure to check our sizing information to ensure the correct item order.
*IF YOUR ON MBSTURGIS.COM AND NEED TO SEE PRICING, THE STANDARD LENGTHS WE OFFER, CLICK THE GET MORE INFORMATION & BUY BOX.

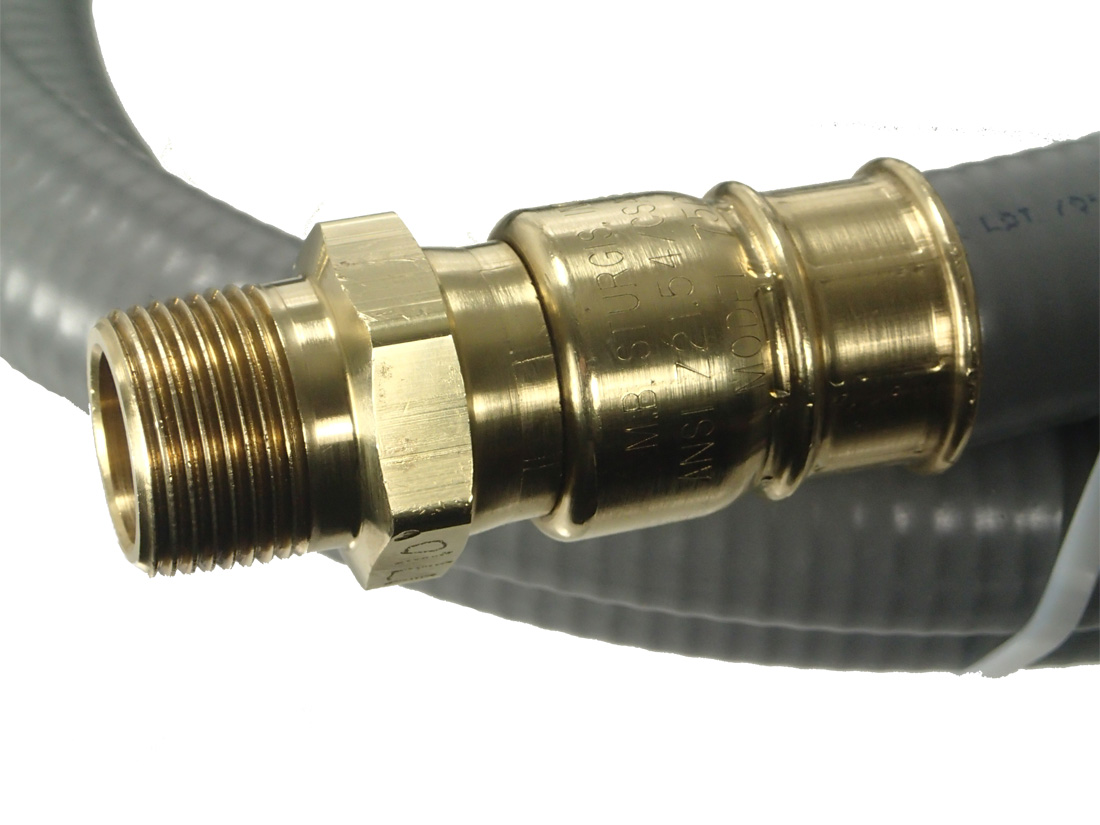

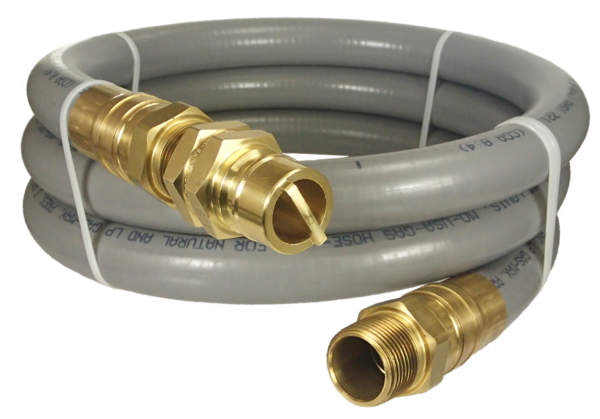

HOSE DESCRIPTION – 1″ ID Stripwound Hose Assembly with a 1″ Male QD Plug X 1″ Male Pipe Thread Swivel. 10′ Overall Length (Can be custom made to any length required).
COMPATIBLE QUICK DISCONNECT – 1″ Female Quick Disconnect. MBS Part Numbers 104093
MAX. FLOW CAPACITY – 471,000 BTU P/HR @ 1/2 PSIG with a 1″ W.C. Pressure Drop
TEMPERATURE RANGE – -40ºF to 200ºF (-40ºC to 93ºC)
CERTIFICATION – Quick Disconnect (ANSI Z21.41) / Hose Assembly (ANSI Z21.54) Used for Natural & LP Gas
