Weber Genesis E-330 Hybrid Gas Connector
Weber Genesis E-330 Hybrid Natural Gas Grill Connector. This natural gas grill connector was specifically designed by M.B. Sturgis Inc. for the higher BTU Weber Genesis E-330 Natural Gas Grill. This gas connector has a ½” ID hose with ⅜” end fittings allowing a higher BTU rate than the ⅜” connector. Can also be used for connecting other mid range BTU appliances such as Patio Heaters, Fire Pits, Low Pressure Crawfish Burners, and Beer Brewers to a permanent gas supply via Natural Gas Quick Disconnect.
*Standard Hose Length is 10 Feet. Be sure to check our sizing information to ensure the correct item order.
*IF YOUR ON MBSTURGIS.COM AND NEED TO SEE PRICING, THE STANDARD LENGTHS WE OFFER, CLICK THE GET MORE INFORMATION & BUY BOX.

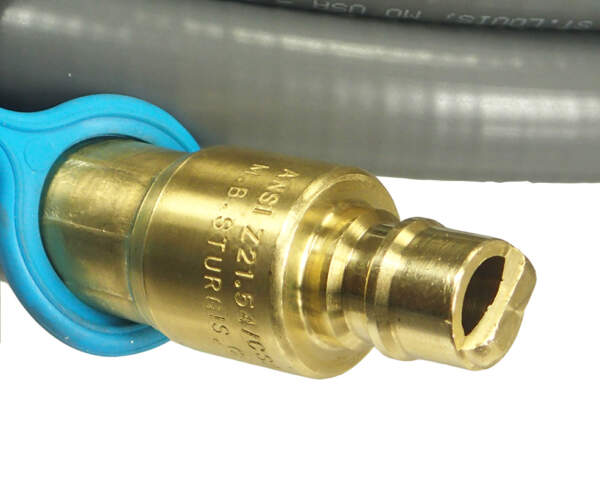

HOSE DESCRIPTION – Genesis E-330 Hybrid Gas Connector. 1/2″ ID Stripwound Hose Assembly with a ⅜” Male QD Plug X ⅜” Female Flare Swivel and full coverage stainless steel overbraid. 10′ Overall Length (Can be custom made to any length required)
COMPATIBLE QUICK DISCONNECT – 3/8″ Female Quick Disconnect. M.B. Sturgis Part number 104406/104007/104014
MAX. FLOW CAPACITY – 82,000 BTU P/HR @ 1/2 PSIG with a 1″ W.C. Pressure Drop (5PSIG Max Working Pressure)
TEMPERATURE RANGE – -40ºF to 200ºF (-40ºC to 93ºC)
CERTIFICATION – ANSI Z21.54 used for Natural or LP Gas
